LATEST NEWS
26 Sep Onyx Line is pleased to announce the upcoming arrival of the latest SOLIS commercial and industrial energy storage solutions at our Dubai warehouse.

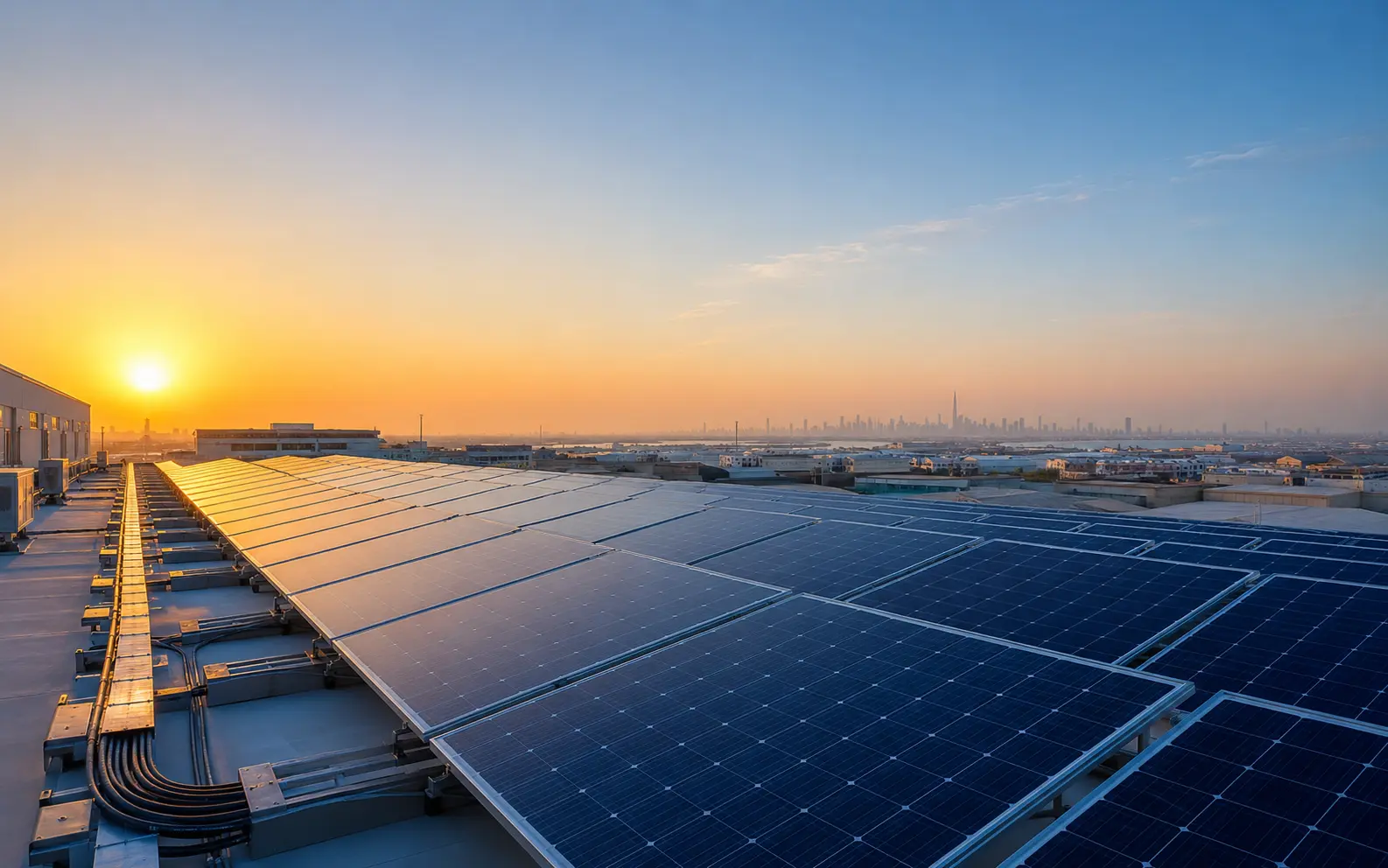

Commercial rooftop solar installation overlooking Dubai

Dubai · International reach · Since 2016

OnyxlinePowers your life.

Engineered solar products and turnkey energy solutions for homes, businesses, industry and water pumping — supported from design to long-term service.

Plan your solar system View project experience
Engineering-led Lifecycle support
Explore
2016Established in Dubai
8+Markets served
1.8–500 kWInverter range
Up to 10 yrsProduct warranties

Solutions & installation

Built for the way your energy is used.

System architecture, equipment selection, installation and commissioning — coordinated as one accountable scope.

View all solutions
Commercial & industrial
02

Commercial & industrial

Scalable rooftop and ground-mounted systems designed around operational loads.

  • Grid-tied & hybrid
  • Peak load strategy
  • Monitoring
Discover solution Start assessment

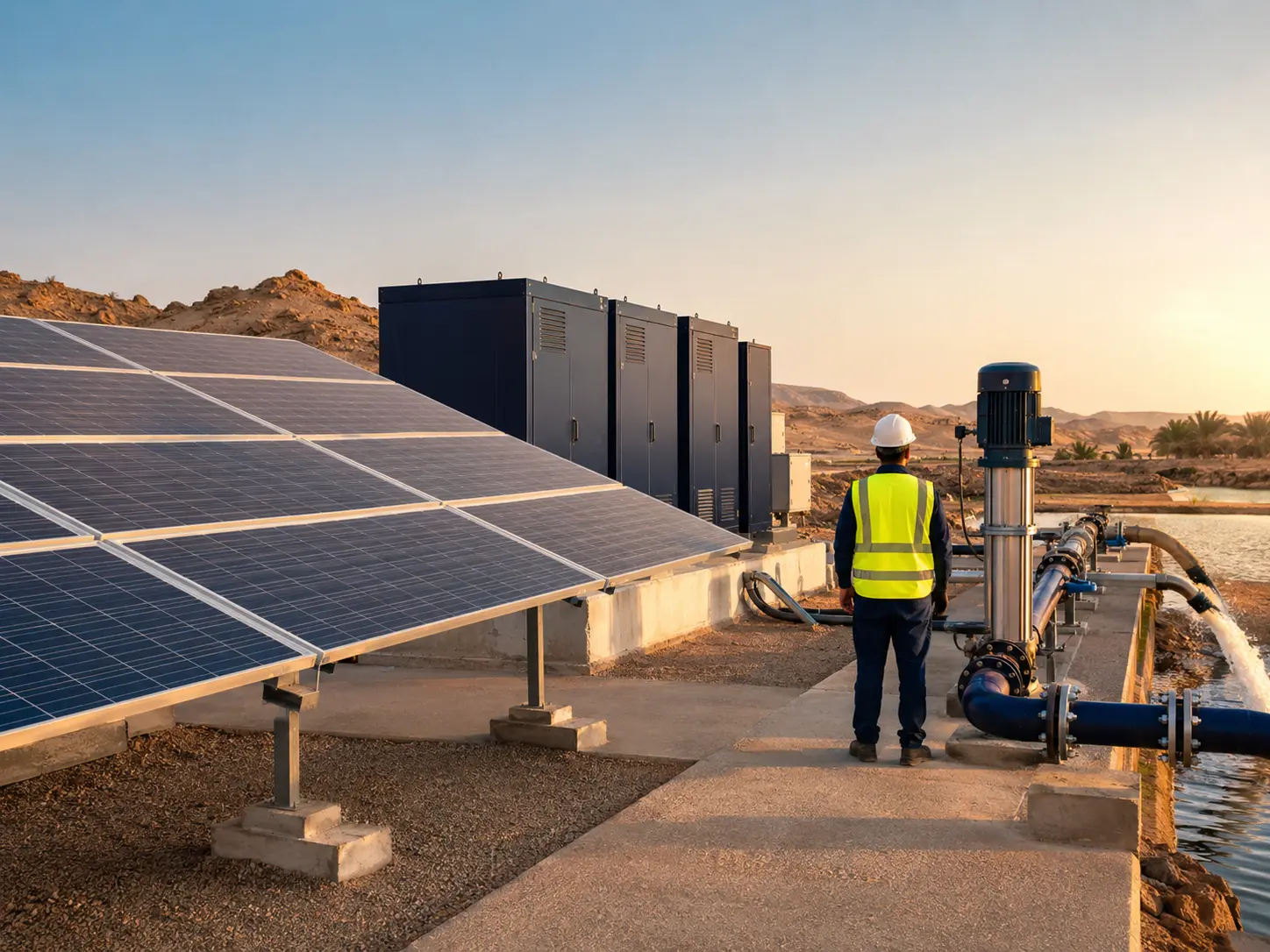

Solar pumping
03

Solar pumping

Reliable solar water-pumping solutions for agriculture and remote operations.

  • VFD control
  • Remote locations
  • Low operating cost
Discover solution Start assessment

Projects in motion

Real systems. Installed, commissioned and supported.

Our teams and partners support solar projects across the UAE, Nigeria, Syria, Lebanon, Iraq, Yemen, Sudan and Russia.

Explore project experience

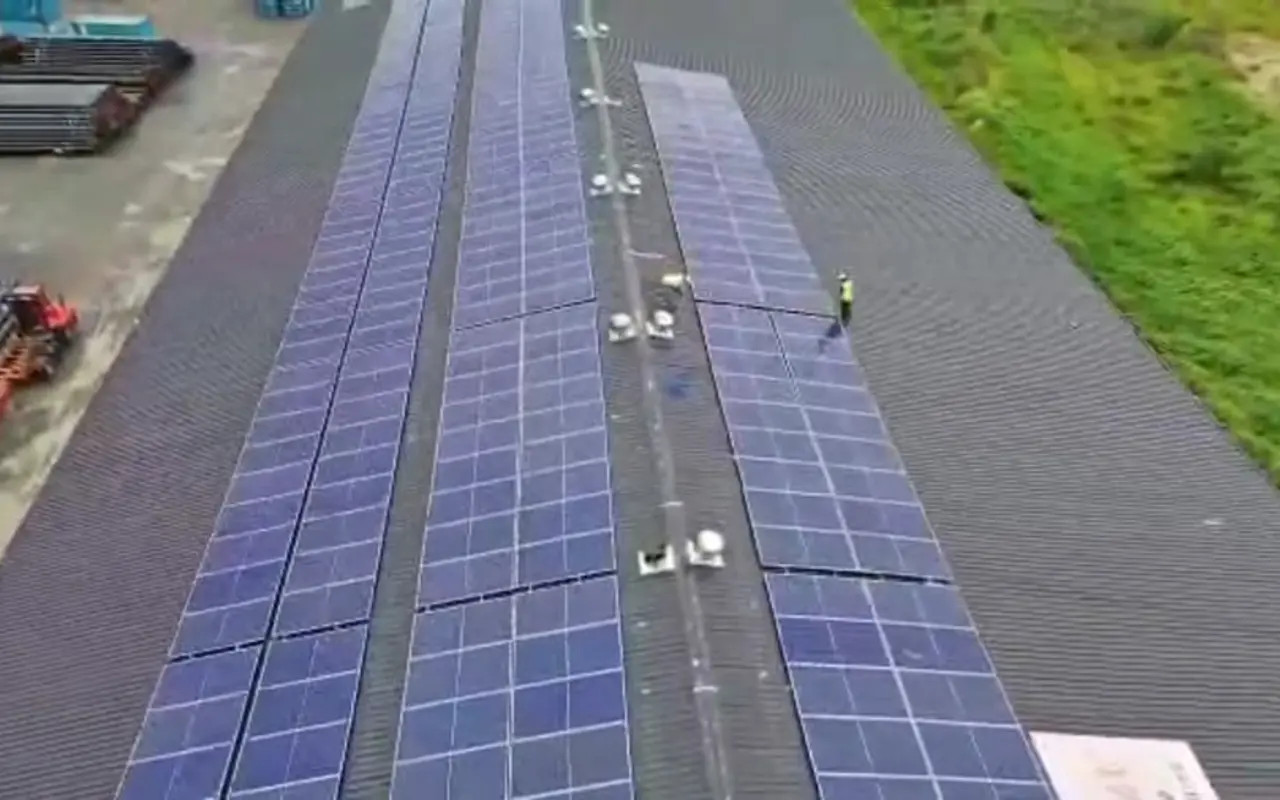

Commercial rooftop
01 Commercial rooftop

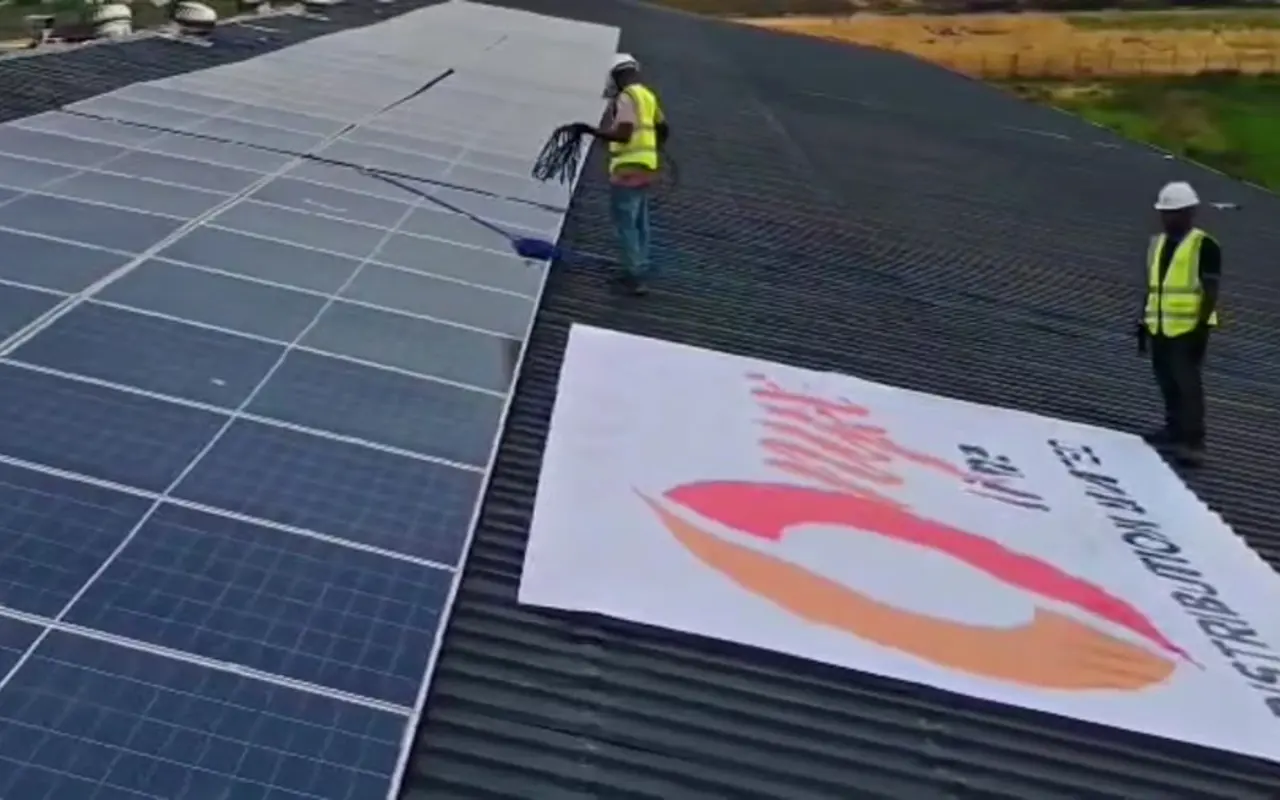

PV array installation
02 PV array installation

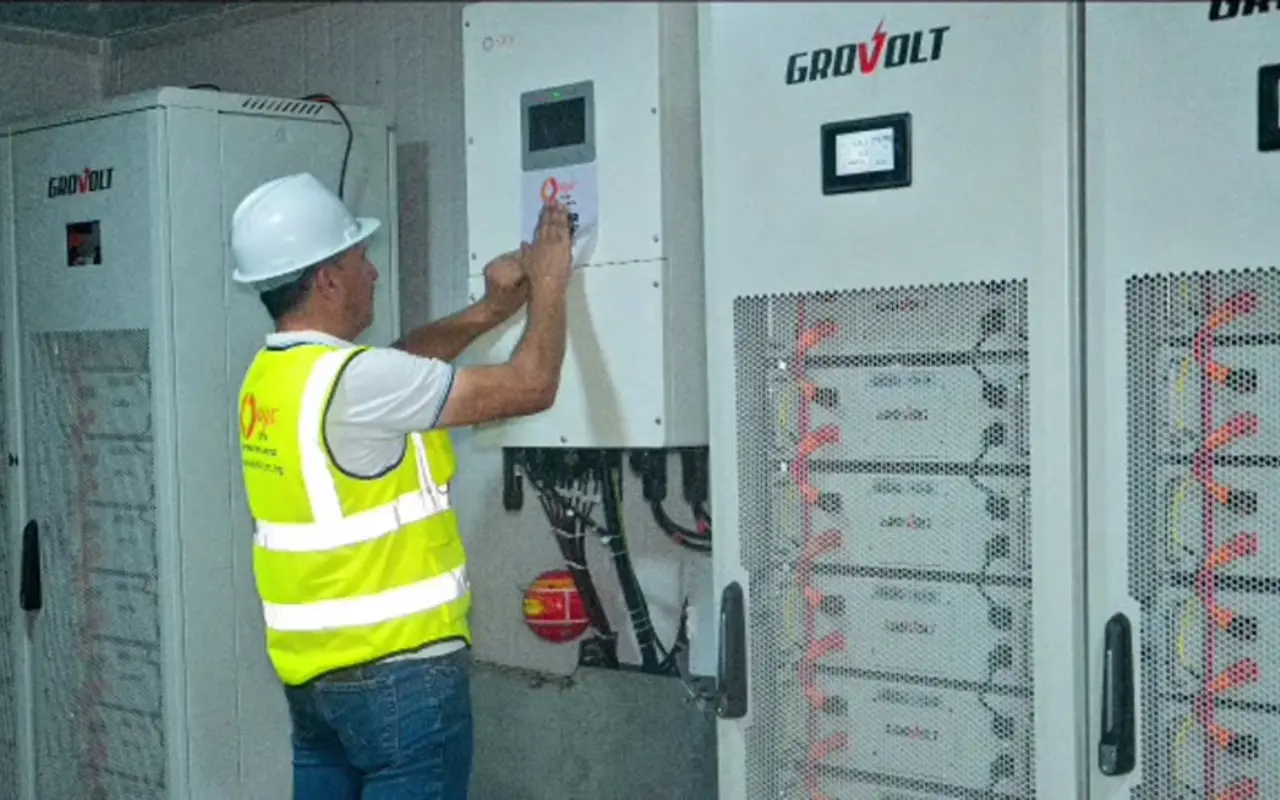

Storage commissioning
03 Storage commissioning
UAENigeriaSyriaLebanonIraqYemenSudanRussia

Preliminary system estimator

Turn your monthly bill into a smarter starting point.

Adjust the values for an indicative system range. Final sizing always follows a technical survey and load analysis.

Smart sizingPreliminary engineering guidance
Property type
Indicative system range8–10 kWp
Indicative panel area40–52 m²
Request an engineering assessment Preliminary guidance only; site conditions, tariffs and operating profile affect final design.

A clear delivery path

Four steps from demand to dependable power.

01

Assess

Site conditions, consumption, load profile and objectives.

02

Engineer

System architecture, sizing, product selection and proposal.

03

Deliver

Supply, professional installation, testing and commissioning.

04

Support

Monitoring, maintenance, warranty and genuine spare parts.

Solar products

One portfolio. Every layer of the system.

A complete product range for off-grid, hybrid, grid-tied and pumping applications.

View all products
01

Rayo4

The Onyx Line RAYO4-24-SA LV is a 4 kW single-phase off-grid solar inverter for 24 V batteries and 110/120 V AC input. It features pure sine-wave output, a 100 A MPPT charger, up to 5,000 W PV input, dual AC outputs and lithium or lead-acid battery compatibility.

4 kW rated power / 8 kVA surge power24 V battery system110/120 V AC inputSelectable AC output: 100/110/120/127 VPure sine-wave output, power factor 1.0Up to 5,000 W solar inputMPPT operating range: 60–450 V DCMaximum PV open-circuit voltage: 500 V DCMaximum charging current: 100 ADual AC outputsCompatible with lithium and lead-acid batteriesLithium battery activation5-inch LCDRS232 / RS485 / CAN communicationWiFi monitoring, depending on configurationOptional CT and meter connectionsMaximum efficiency: 92% in battery modeIP21 protection ratingCompact design, net weight 7.2 kg
Explore product Request quote
02

SUN-Pro-8

The Onyx Line SUN PRO-8 IP65 is an 8 kW hybrid inverter with 120/240 V split-phase output and a 48 V battery system. It features dual AC outputs, two MPPT trackers, up to 16 kW recommended PV capacity,

8 kW rated output power120/240 V and 120/208 V output48 V battery systemUp to 16 kW recommended PV capacityTwo independent MPPT trackersMPPT voltage range: 85–450 V DCMaximum PV open-circuit voltage: 500 V DCDual AC outputsCompatible with LiFePO4 and lead-acid batteriesMaximum battery charging current: 160 AMaximum battery discharging current: 180 A16 kVA surge power for 5 secondsMaximum efficiency: 98%Maximum MPPT efficiency: 99.9%Up to 9 units in parallel for split-phase systemsUp to 12 units in parallel for three-phase systemsIP65 protection ratingType III surge protection on PV and AC10 ms transfer time in UPS modeWiFi connectivity and LCD displayRS485 / CAN communication with battery BMSWall-mounted design with smart cooling5-year warranty
Explore product Request quote
03

SOLIS-S6-EH2P-9.6-16-K03-SV-YD-L-US

The SOLIS SOLARATOR S6-EH2P series offers 9.6–16 kW hybrid inverters with 120/240 V split-phase output and 48 V battery compatibility. Common features include three MPPT trackers, on-grid and off-grid operation, generator integration, AC coupling, integrated 200 A pass-through and bypass, backup transfer in under 10 ms, a 7-inch LCD and SolisCloud monitoring.

Power range: 9.6–16 kW120/240 V split-phase backup output, 60 Hz48 V battery systemOn-grid, off-grid and microgrid operationThree independent MPPT trackersTwo PV strings per MPPTMPPT operating range: 100–450 VMaximum PV input voltage: 550 VMaximum input current: 40 A per MPPTRecommended maximum PV capacity: 15.36–25.6 kW, depending on modelCompatible with lithium-ion and lead-acid batteriesBattery voltage range: 40–60 VMaximum battery charge/discharge current: 200–290 A, depending on modelCAN / RS485 battery BMS communicationSmart port for generator connection or AC couplingGenerator input capacity: up to 24 kW / 100 AIntegrated 200 A AC pass-through and bypassBackup transfer time: less than 10 msSurge capability: 3× rated power for 1 second; 2× for 10 secondsDedicated-load or whole-home backup configurationsMaximum allowable phase imbalance: 50%Maximum efficiency: 96.02%Integrated AFCI and ground-fault monitoringBuilt-in SunSpec-certified rapid-shutdown transmitterType 4X enclosure7-inch LCD with Bluetooth app interfaceSolisCloud monitoringOptional WiFi, LAN or cellular connectivityOperating temperature: −25 °C to +60 °C
Explore product Request quote
04

S6-EH3P75K10-LV-YD-H-US (75KW HV 3PH)

Three-phase hybrid inverter for solar energy and high-voltage battery storage, delivering 70 kW at 208 V or 75 kW at 240 V. Features 10 MPPTs, two independent battery ports, generator integration, rapid backup switching and IP66 protection.

Recommended maximum PV array power: 150 kWMaximum PV input voltage: 1,000 V.Rated PV voltage: 600 V.Start-up voltage: 180 V.MPPT voltage range: 150–950 V.
Explore product Request quote

Technology partners

A portfolio built on proven names.

Product selection is matched to application, environment, budget and long-term service needs.

ONYX LINESolar technology
SOLISSolar technology
GROVOLTSolar technology
JINKOSolar technology
TRINASolar technology
JA SOLARSolar technology
LONGISolar technology

After-sales

A practical support system for the whole lifecycle.

Technical support, planned maintenance, monitoring, warranty assistance and genuine spare parts.

Technical responsePlanned inspectionSystem monitoring
Explore after-sales support

Start with the right questions

Request a solar assessment

Share the essentials and our team will follow up with the appropriate technical next step.

+971 52 433 2830 Talk on WhatsApp
SOLIS Core technology brand
